Trimec ES8100 V Electric Bolt Mortice Lock motorised

• The unique and popular Lockwood/Trimec ES8000 V-Lock has been completely redesigned and engineered to produce the new ASSA ABLOY ES8100 V-Lock.
  Designed and assembled in Australia, with patents pending in various countries, the ES8100 incorporates many improvements over its Lockwood/Trimec predecessor, the ES8000, including a higher preload rating of 100kg, Door Position Monitoring, integrated LED lock status and diagnostics visual indication, increased door misalignment correction from 7mm to 12mm, an IP53 rating for external door applications and simple, one-step, PTO/PTL onsite configuration.
  Although completely redesigned internally, the new ES8100 V-Lock body and faceplate retains the original footprint and is a direct retrofit to the original ES8000 model. The ES8100 strike plate utilises the same
  fixing locations but is 3mm wider to increase misalignment distance.
  The ES8100, also known as the V-lock, contains a high torque motorised bolt which moves into a V shaped Strike Plate, pulling the door into alignment, when locked. The ES8100 may be mounted either vertically
  or horizontally but cannot be mounted in the floor.
  Key Features:
  • Unlocks under a Pre-Load of up to 100kg in
  3-wire mode, 15kg in 2-wire mode
  • Locks under a Pre-Load of 20kg (12W) and
  35kg (24W)
  • 1000kg Holding Force
  • IP53 rated for external door applications
  • Door Position and Lock Status Monitoring
  • On-Board visual Lock Status indication and
  diagnostics LED
  assaabloyopeningsolutions.com.au
  • Easy, one-step, Fail Safe (PTL) and Fail Secure
  (PTO) field selection
  • Optional Surface / Glass mount Kit
  • May be mounted vertically or horizontally
  (must not be mounted in the floor)
  • Allows for door misalignment of up to 12mm
  total (+/-6mm)
  • Operating voltage: 11.4 – 26VDC
  • Durability tested to 500,000 cycles (120N
  unlocking, 50N locking)
  The ES8100 V-Lock can be mortice mounted and concealed from view or surface mounted, with the inclusion of an optional kit. A slim design with classic satin stainless steel faceplate, makes the ES8100 a product
  with great aesthetic appearance and easy installation.

Applications
• Single and Double Swing hinge Doors
• Doors subject to Side Load (Pre-Load)
• Misaligned doors
• Glass doors
• Suitable for use with Access Control, Intercom, Keypad and Card Reader Systems and doors
requiring door position monitoring

Please see above product information tab for more detailed product and installation information.

TO ORDER THE SURFACE HOUSING PLEASE SEE ABOVE LEFT YOU MAY ALSO NEED

For fire rating please order  intumescent kit ES8000­IK­FD60 see you may also need above left to order

• We stock the following versions:
• ES8100 ASSA ABLOY ES8100 V-Lock, 11.4 -26VDC, Fail Safe/Fail Secure site settable, Full Monitoring

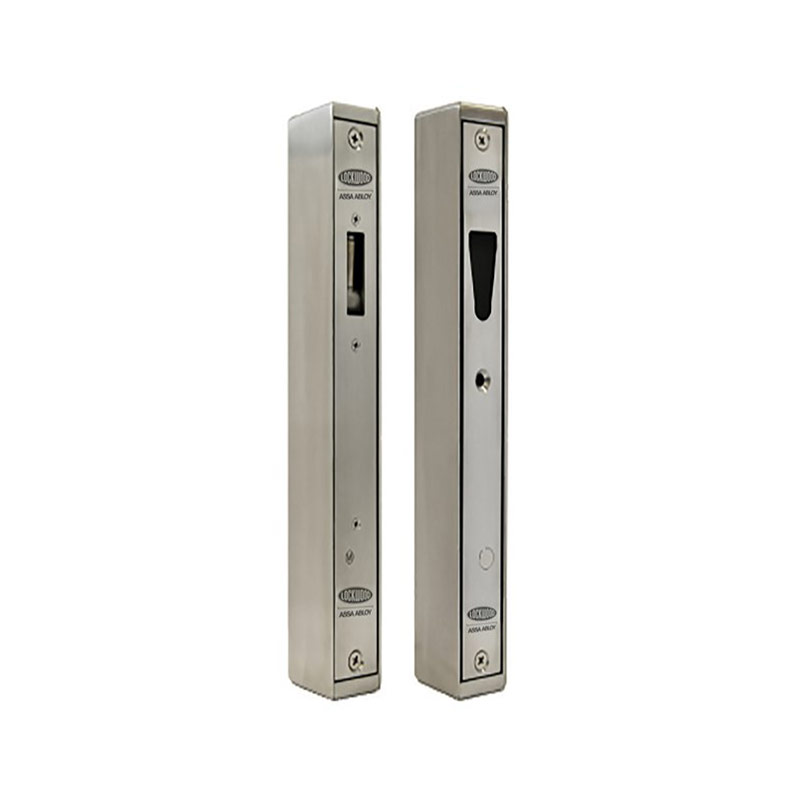

• 208000-000 ES8100 V-Lock Glass Door Housing (Includes Dress Plate & Fixing Tape)
• 208100-003 ES8100 V-Lock Strike Plate with Magnet

Features

• Key Features:
  • Unlocks under a Pre-Load of up to 100kg in
  3-wire mode, 15kg in 2-wire mode
  • Locks under a Pre-Load of 20kg (12W) and
  35kg (24W)
  • 1000kg Holding Force
  • IP53 rated for external door applications
  • Door Position and Lock Status Monitoring
  • On-Board visual Lock Status indication and
  diagnostics LED
  assaabloyopeningsolutions.com.au
  • Easy, one-step, Fail Safe (PTL) and Fail Secure
  (PTO) field selection
  • Optional Surface / Glass mount Kit
  • May be mounted vertically or horizontally
  (must not be mounted in the floor)
  • Allows for door misalignment of up to 12mm
  total (+/-6mm)
  • Operating voltage: 11.4 – 26VDC
  • Durability tested to 500,000 cycles (120N
  unlocking, 50N locking)

Applications

• Misaligned doors
• Timer doors
• Glass doors

Standards and Compliance

• SCEC Endorsed (Intruder Resistant Bracket Required)
• Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 Part 1: Fire resistant door sets).
• CE Approved

Specification Statement

The Trimec ES8100 lock must be a high torque motorised bolt with Preload tolerance. The strike plate must be shaped in a V format to accommodate for misaligned doors. Lock will unlock with up to 15kg of side pressure and will be powered with 12-24v and draw no more than 1000mA. The motorised door lock must be configurable for Power to Lock (Fail Safe) or Power to Open (Fail Secure). The electric lock must be triggered with a magnet positioned in strike plate and be monitored for locked unlocked and door position.

ES8100 V-Lock Technical Information

Order the Trimec ES8100 V mortice lock online at Electric Locking Systems with worldwide delivery, same day dispatch and free technical support.
